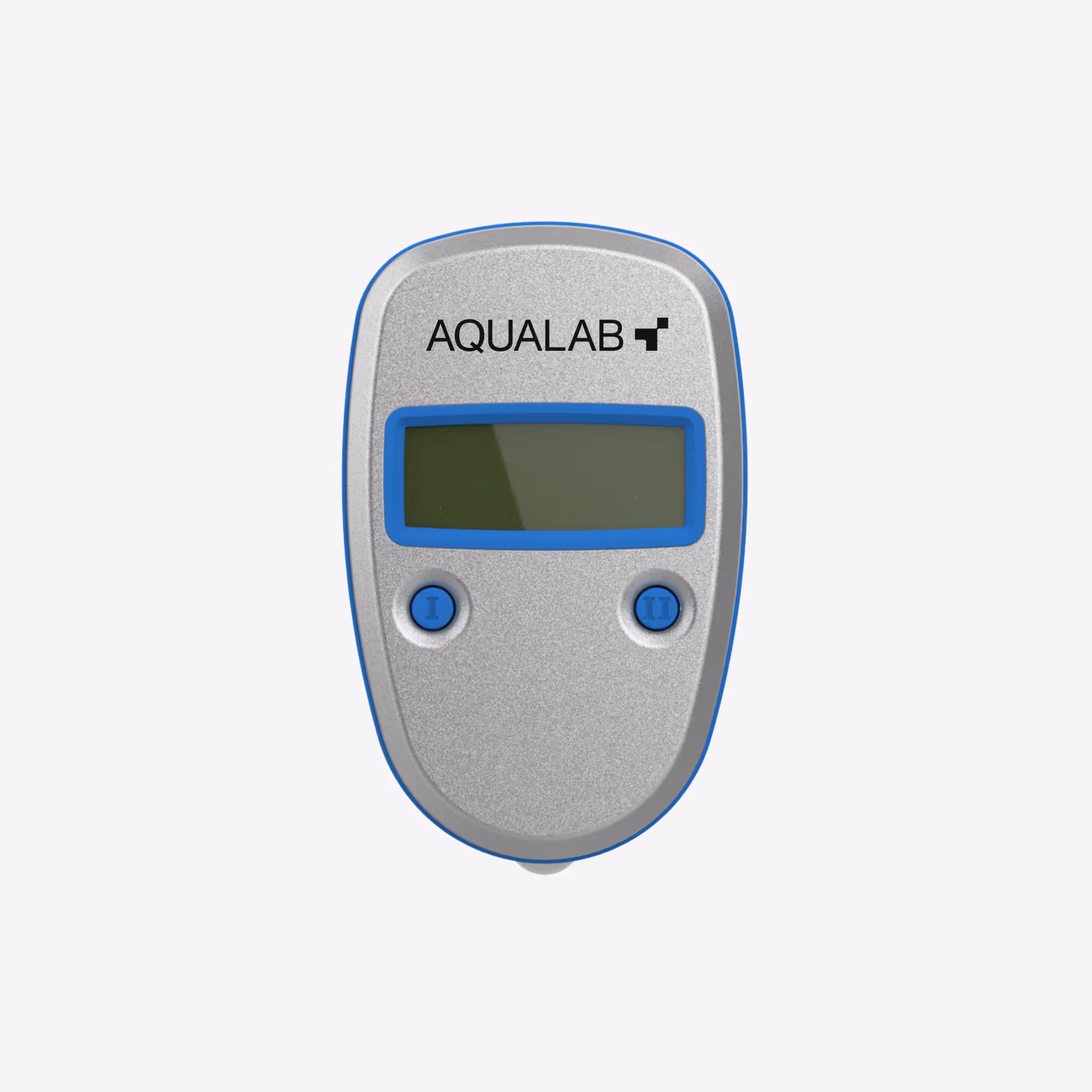

POrtable WATER ACTIVITY METER
PAWKIT
Grab and go
Designed for government inspectors and third-party auditors, the battery-operated portable PAWKIT water activity meter is perfect for water activity spot checks on the go.
How it works
To make a measurement, flip back the sensor cover and fit the PAWKIT over a standard AQUALAB sample cup. Push the button for a water activity reading in 5 minutes.
Portable water activity

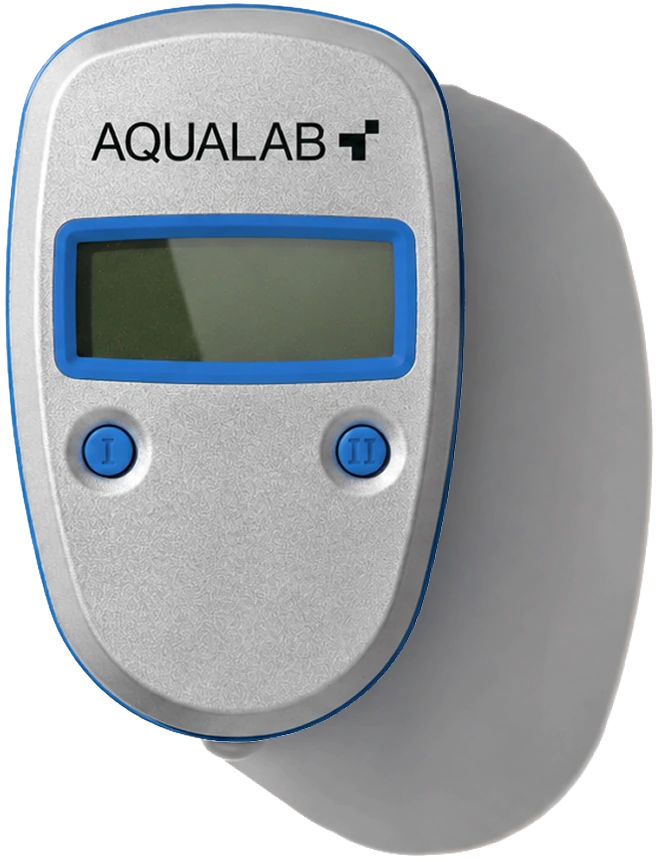

The 3.5 x 4 inch PAWKIT weighs just 4 ounces and is designed to fit in a lab coat pocket. It runs on two coin cell batteries that last up to 3 years under normal use. It has an easy two-point calibration using AQUALAB standards.
Limitations
The PAWKIT is designed to make readings where a bench top meter is not practical. Its small size and battery power deliver the ultimate in portability, but limit the PAWKIT’s accuracy (± 0.02 aw) due to its capacitance sensor and lack of temperature control .
The PAWKIT portable water activity meter should only be used in situations where a higher accuracy reading is not critical to ensure or document safety and quality.
Downloads and documents
Technical specifications
Measurement specifications
Water Activity
Range:
0.03 to 0.95aw
Resolution:
0.01 aw
Accuracy:
±0.02 aw
Temperature
Resolution: 0.1 °C
Accuracy: ±0.2 °C
Read time
5 min
Read Time
Minimum:
60 s
Typical:
~5 min
Physical specifications
Case Dimensions
Length: 10.7 cm (14.21 in)
Width: 6.6 cm (2.60 in)
Height: 2.0 cm (0.79 in)
Case material
Stainless steel and valox 325 plastic
Sample cup capacity
7.5 mL (0.26 fl oz), recommended (15 mL (0.47 fl oz), full)
Weight
115 g (4 oz)
Display
64 × 128 graphical
Operating temperature
Minimum: 4 °C
Maximum: 50 °C
Operating environment
0%–90% relative humidity (noncondensing)
Power
2-3 V 16 mm coin cell batteries (approx. 3 yr. life in normal use)
COMPLIANCE
Manufactured under ISO 9001:2015EM ISO/IEC 17050:2010 (CE Mark)
